Stand for the " BVB 25 L Lathe".
A lathe stand for the BVB25L . The lathe stand will be made from 50 X 50 X 5 mm angle with a top and bottom frame, and a cut away to allow space for adjusting the electric motor. In this way it makes it easy to tension the V-belts.
The overall dimensions are length 1250 mm width 400 mm and total height 800 mm
Picture on the left all the material cut to size and laid out on the table.
picture on the right all tacked together waiting for the top frame to be made up and fitted.

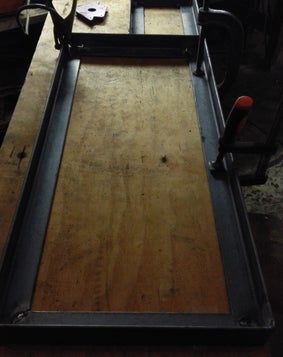

Picture on the left the lathe stand all tacked up and partly welded.
picture on the left stand fully welded up.
Center picture four ears welded in position to the bottom of the frame and the caster fitted so it can rolled to the position in my home work shop.
Picture far right the lathe fitted on the stand fully mobile now. Ready to be rolled in to its final working space. In this picture the tail stock has been removed to lighten the load on the castors.
